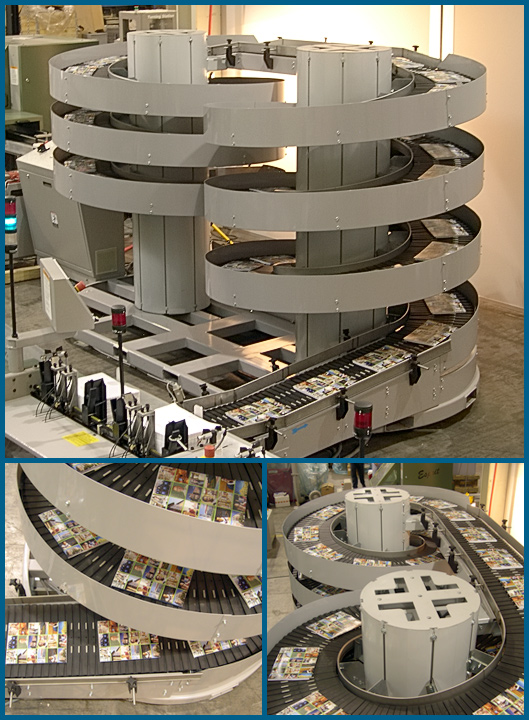

The Ryson Vertical Accumulation Buffer utilizes the proven Ryson Spiral Conveyor technology designed for continuous vertical product flow, featuring a small footprint, high throughput, low maintenance and long life.
|
|
|
|
 |
|
The accumulation buffer combines two spirals for up and down movement, thereby effectively utilizing overhead space for accumulation storage while preserving valuable floor space. Most conveyable products can be handled, including bottles, cans, pails, bags, bundles, totes, containers and wrapped or unwrapped items.
The Ryson Accumulation Buffer can be used to provide buffering where products need time for cooling, drying or curing. Additional dynamic buffer storage capacity can be obtained by adding pairs of spirals.
|
|
|
|
|
 |
|
 |
|
|
|
 |
|
Dynamic Buffering

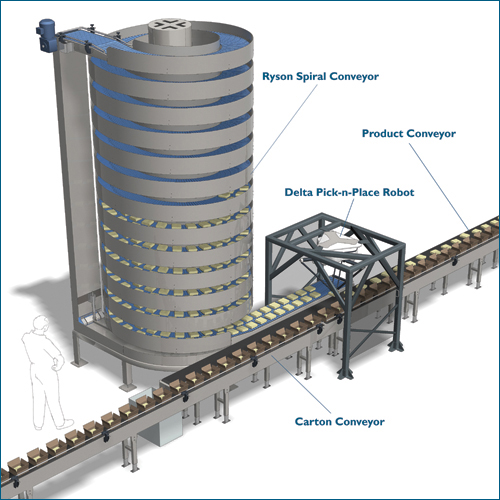

The Ryson Accumulation Buffer can also be used to take up surges between manufacturing processes and can provide for dynamic buffering during shorter production or packaging line interruptions, thereby preventing unnecessary production stoppages. Some products can be merged back into the production or packaging lines directly from the accumulation buffer while others may need additional merging devices – depending on type of product and speed of operation.
|
|
 |
 |
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
