Dual Track Spirals

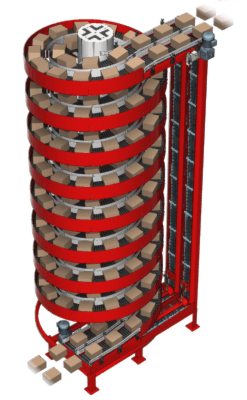

The new Ryson Dual Track Spiral Conveyors are the ultimate in space savings.

Dual-Spiral-renderingTwo tracks operate independently within one spiral structure. Both tracks can go up or down, and can optionally be reversible.

dual-above

Only one drive motor is required for each track, resulting in substantial savings in energy, controls and systems integration. The dual spiral conveyors build on the already proven Ryson Spiral Technology and are designed for low maintenance and long life. Ryson Spiral Conveyors need less floor space than conventional conveyors and are faster and more reliable than any elevator or lift. See some examples of the Ryson Dual Track Spiral.

Models with dual 8”, 12”, 16” or 20” wide slats are available. Some site assembly is required for models with 16” and 20” wide slats.

Dual-Lane-Chart

Proprietary Slat Belt Arrangement:

Ryson Spiral Conveyor Chain Slat Arrangement

This innovative arrangement enables a low friction operation for the spiral conveyor. The slats are supported by precision steel roller bearings which ride on a polyurethane surface. This arrangement effectively takes up the side forces created by a tight radius and at the same time increases the load carrying capacity of the chain up to 75 lbs. per linear foot. This enables the spiral conveyors to start and stop fully loaded and facilitates high speed, low noise and long life.

The slats are made of a fiberglass reinforced nylon composite and are available in widths of 8″, 12″, 16″, and 20″. The slats can also be furnished with friction inserts when additional grip is required.





Modular Design:

Dual-ConfigurationsA

The dual spirals are available in 4 basic standard configurations (A, B, C and D) and will accommodate most requirements relating to the location of the in and out feed tangents. All configurations can operate up or down in a clockwise or counterclockwise rotation.

Dual-ConfigurationsB

The position and length of the infeed-tangent on up spirals and the outfeed-tangent on down spirals can be customized to meet specific layout requirements. This is possible for all standard configurations. The following depict samples of common customizations:

  • C-EX configuration matches the centerline of the top and bottom conveyor centerlines. Centerline offsets can also be accommodated.
  • B-MA is an example of modified in or outfeed angle. The modified angle is normally 45 or 30 degrees, but other angles can be provided.
  • A-EX show extended in or outfeed tangents which can be straight or curved and can accommodate centerline off-sets.

Dual-Spiral-3Dual-Spiral-2
The two tracks of the Dual Track Spiral Conveyors do not have to feed in and out of the spiral at the same elevations, and can be applied very effectively to multi-level order picking modules or similar applications. The outside track serves the first level and the inner track the second level. In the examples to the right, the space savings is considerable if you consider that you get two spirals in one compact footprint.

For more details on the Ryson Vertical Conveyors, please visit our Ryson YouTube Channel, or read current news and installation stories on the Ryson Blog.

pdf-iconDownload the information on the Ryson Dual Track Spiral Conveyor here.
haga clic aquí para descargar información acerca de este producto en PDF



Dual Track Spiral



Many Features and Benefits:

There are many features. benefits and options to the Ryson Spiral Conveyors. Read more about them on our Spiral Conveyor Page, or download our Spiral Conveyor Brochure.

Download the new Ryson Conveyor Brochure




For more details on the Ryson Vertical Conveyor, please visit our Ryson YouTube Channel, or read current news and installation stories on the Ryson Blog.











Ryson Dual Track Spiral

Controls and Integration:

Most of our Spiral Conveyors are shipped without controls because they normally integrate with an overall conveyor control system. Our spirals always include an inverter duty gear motor and two proximity sensors, one for the automatic chain tensioner and one for the overload protection device. We also offer a number of controls and pre-wiring options.

A Variable Frequency Drive (VFD) is required for proper operation of the spirals. All Ryson Spirals are thoroughly shop tested prior to shipment, but depend on proper integration with the overall conveyor system for optimum performance. Read about our Integration instructions.

Click here to see videos of spiral conveyor applications.
