Ryson Dual Track Spiral Conveyors title bar

The new Ryson Dual Track Spiral Conveyors are the ultimate in space savings.

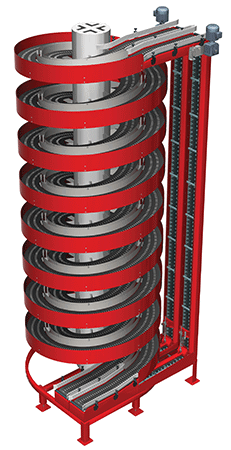

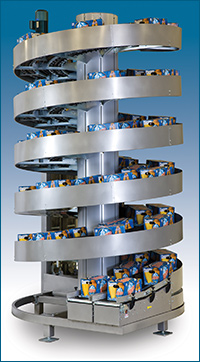

Ryson Dual Track Spiral Conveyor

Two tracks operate independently within one spiral structure. Both tracks can go up or down, and can optionally be reversible.

Only one drive motor is required for each track, resulting in substantial savings in energy, controls and systems integration. The dual spiral conveyors build on the already proven Ryson Spiral Technology and are designed for low maintenance and long life. Ryson Spiral Conveyors need less floor space than conventional conveyors and are faster and more reliable than any elevator or lift.

Ryson Dual Track Spiral footprint

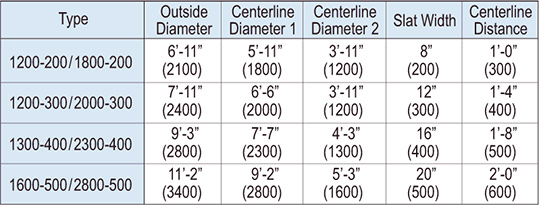

Models with dual 8”, 12”, 16” or 20” wide slats are available. Some site assembly is required for models with 16” and 20” wide slats.

Ryson Dual Track Spiral Conveyor Slat Widths


Standard Configurations

The dual spirals are available in 4 basic standard configurations (A, B, C and D) and will accommodate most requirements relating to the location of the in and out feed tangents. All configurations can operate up or down in a clockwise or counterclockwise rotation.


Ryson Dual Track configurations


Custom configurations

The position and length of the infeed-tangent on up spirals and the outfeed-tangent on down spirals can be customized to meet specific layout requirements. This is possible for all standard configurations. The following depict samples of common customizations:


• C-EX configuration matches the centerline of the top and bottom conveyor centerlines. Centerline offsets can also be accommodated.

• B-MA is an example of modified in or outfeed angle. The modified angle is normally 45 or 30 degrees, but other angles can be provided.

• A-EX show extended in or outfeed tangents which can be straight or curved and can accommodate centerline off-sets.


Ryson Dual Track advanced configurations

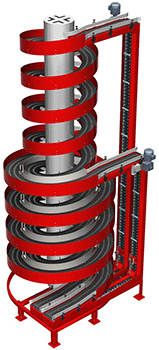

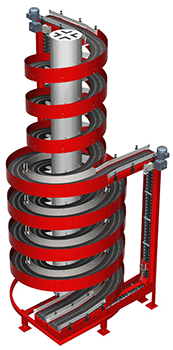

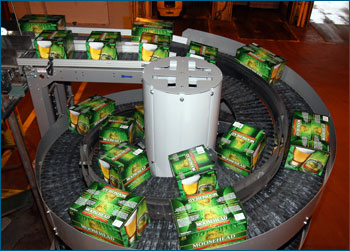

The two tracks of the Dual Track Spiral Conveyors do not have to feed in and out of the spiral at the same elevations, and can be applied very effectively to multi-level order picking modules or similar applications. The outside track serves the first level and the inner track the second level. In the examples to the right, the space savings is considerable if you consider that you get two spirals in one compact footprint.
Ryson Dual Track Spiral Conveyor
Download the information on the Ryson Dual Track Spiral Conveyor here.

haga clic aquí para descargar información acerca de este producto en PDF

Download the information on the Ryson Dual Track Spiral Conveyor here.
Ryson Dual Spiral Conveyor
Controls

Most of our spirals are shipped without controls because they are normally integrated into an overall conveyor control system. The spirals always include an inverter duty gear motor and two proximity sensors, one for the automatic chain tensioner and the other for the overload protection device.

A Variable Frequency Drive (VFD) is required for the proper operation of the spiral. Ryson offers several controls options including :
• Stand alone control panel with interface capabilities
• Prewired motor disconnect
• Proximity sensors prewired to a central junction box
• Prewired missing slat detection sensors.

Integration

All Ryson Spirals are shop tested prior to shipment, but optimal performance depends on proper integration with the overall conveyor system. Read about our Integration.
