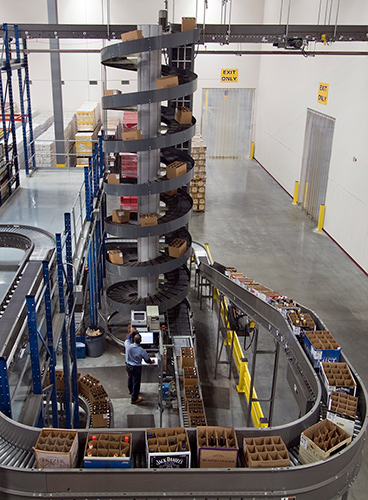

One of our new High Capacity class of Spiral Conveyors is being utilized as an “early-out” incline conveyor at a wine and liquor distribution center. The spiral is installed next to a three-level pick module and is used to efficiently transport finished case picks from the express first level out to the sortation system,
The spiral, besides saving space and reducing the turnkey implementation costs of the more common series of incline conveyors and curves, adds to the overall picking efficiencies by routing the completed orders from the express pick zone directly to the shipping area, rather than transporting those cases through the other two levels of the pick module.
The Model HC1700-600 is 27 feet tall and operates at 175 feet per minute. Download the complete specifications for our High Capacity Spiral Conveyor.
The Ryson High Capacity Spiral Conveyors are in response to our customers need to go higher and handle more weight.
The Ryson High Capacity Spiral Conveyors can handle twice the capacity of our standard spirals and are assembled and shipped in one piece which reduce the time and cost of installation.
The load capacity is 75 lbs. per linear foot of conveyor with speeds up to 200 FPM. The total weight capacity in the vertical lift at any one time is 3,600 lbs. The Ryson High Capacity Spiral is the only vertical lift that can start and stop fully loaded with this much weight. Yet, only one drive motor is required, resulting in substantial savings in energy, controls and system integration.
